Leviton 4100MI7WLEVS
4100MI7WLEVS Product Description

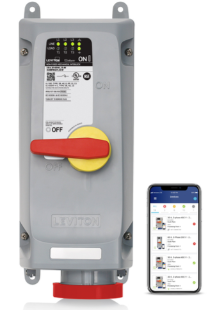

100 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60903-2 Pin & Sleeve Mechanical Interlock with Sensing Capabilities and LED Indication, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused - Red
Inform is Leviton’s technology platform that enables conventional Leviton products to provide real-time information that is used to improve operational safety, efficiency, and productivity.
Specifications:
Brand: Leviton
Phase: 3-Phase
UV Resistance: UV stabilized F1 rated enclosure
Wire: 4
RoHS Compliant: FALSE
Housing Screws: 303 Stainless Steel
Horsepower Rating: 60HP
Voltage: 480 VAC
Color: Red
Cold Impact: 5 ft-lb impact at -31 °C for 3 hrs per UL746C
Housing Material: PBT+PC
Mold Stress Relief: 70 °C for 7 hours without deformation
Feature: LED Indication
Current Interrupting: Certified for current interrupting at full-rated current and voltage
Pole: 3
Device Type: Non-Fused Mechanical Interlock
Dielectric Voltage: 2200V for 1 minute
Amperage: 100 A
Gasket Aging: 70 °C for 168 hr per UL50E
Flammability: Rated V-0 per UL 94
Configuration: North American
Series: LEV Series
Crush Test: 100 lbs
Endurance: 6,000 cycles under load
Handle Material: PBT+PC with TPE Overmold
IP Rating: IP66, IP67, IP68, IP69, IP69K
Gasket Material: Buna-N
Contact Material: Nickel-Plated copper alloy
