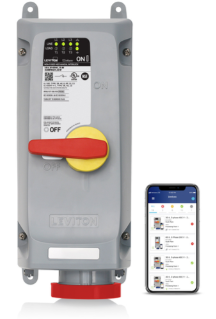

Leviton 4100MI7WLEVC
4100MI7WLEVC Product Description
100 Amp, 480 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Mechanical Interlock with Remote Monitoring, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Non-Fused, Wi-Fi (no hub required). Requires Internet connection for remote monitoring. - Red Compatible with Wi-Fi® 802.11 a/b/g/n networks @ 2.4GHz and 5GHz with WPA or WPA2 security.
Specifications:
Brand: Leviton
Color: Red
Gasket Material: Buna-N
Dielectric Voltage: 2200V for 1 minute
Voltage: 480 VAC
Communication: Wi-Fi 802.11 a/b/g/n networks @ 2.4GHz and 5GHz with WPA or WPA2 security
Amperage: 100 A
Device Type: Non-Fused Mechanical Interlock
Gasket Aging: 70 °C for 168 hr per UL50E
Pole: 3
Horsepower Rating: 60HP
SCCR: 65kA (non-fused)
Mold Stress Relief: 70 °C for 7 hours without deformation
Phase: 3-Phase
UV Resistance: UV stabilized F1 rated enclosure
Series: LEV Series
Housing Material: PBT+PC
Handle Material: PBT+PC with TPE Overmold
Current Interrupting: Certified for current interrupting at full-rated current and voltage
Feature: LED Indication| Wi-Fi Enabled| LED Indication| Wi-Fi Enabled
Flammability: Rated V-0 per UL 94
Cold Impact: 5 ft-lb impact at -31 °C for 3 hrs per UL746C
Crush Test: 100 lbs
Warranty: 5-Year Limited
Contact Material: Nickel-Plated copper alloy
Housing Screws: 303 Stainless Steel
IP Rating: IP66, IP67, IP68, IP69, IP69K
Endurance: 6,000 cycles under load
Wire: 4
