Leviton 4100C9WLEV
4100C9WLEV Product Description

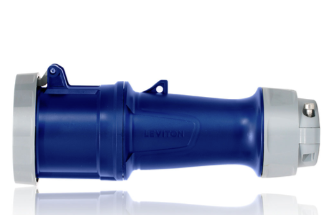

Leviton 100A, 250V. 3-Phase, 3P, 4W, LEV Series Pin & Sleeve Connector, Watertight, Blue Finish.
Specifications:
Brand: Leviton
Screw Terminal Torque: 50 in-lb
Device Type: Connector
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
IP Rating: IP66, IP67, IP68, IP69K
Max. Voltage: 600V
Cable Clamp Screw Torque: 15 in-lb
Series: LEV Series
Temperature Rise: Max 30 °C rise at full rated current (after overload)
Color: Blue
RoHS: RoHS compliant components
NEMA Enclosure Type: 3R, 4X, 6P and 12
Impact: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
Crush Test: 250 lbs for 1 min after -25 °C for 6 hrs
Amperage: 100 A
Terminal Screws: 303 Stainless Steel
Clock Position: 7 o'clock
Corrosion Resistance: Salt fog tested
IEC Rating: 60309-1, 60309-2
Endurance: 250 cycles rated V and I load, 250 cycles no-load (100A)
Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
Dielectric Voltage: 3000V for 1 min.
Conductor Range: #6 AWG to #1AWG
Grommet/Gasket: Buna-N
Contact Carrier: Glass filled Nylon
UV Resistance: UV stabilized F1 rated housings
Pole: 3
Overload UL20 Test: 50 cycles
Housing: Impact Modified Nylon
Assembly Screws: 303 Stainless Steel
Voltage: 250 VAC
Wire: 4
SCCR: 200kA
Operating Temperature: -35C to +66C
Horsepower Rating: 20 HP
Phase: 3-Phase
