Leviton 4100B7WLEV
4100B7WLEV Product Description

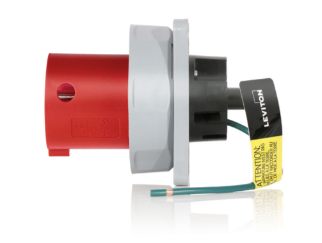

Leviton 100A, 480V 3-Phase, 3P, 4W, LEV Series Pin & Sleeve Inlet, Watertight, Red.
Specifications:
Brand: Leviton
Horsepower Rating: 20 HP
Clock Position: 7 o'clock
Dielectric Voltage: 3000V for 1 min.
Housing: Impact Modified Nylon
Amperage: 100 A
Crush Test: 302 Stainless Steel
Conductor Range: #6 AWG to #1 AWG
Hardware Head Type: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
Corrosion Resistance: Salt fog tested
RoHS Compliant: FALSE
Phase: 3-Phase
Pole: 4
Impact: Impact per UL1682, -25C 8 drops at minimum 30 inch height
Contact Carrier: Glass filled Nylon
Max. Voltage: 600V
Assembly Screws: 316 Stainless Steel
Current Interrupting: Certified for current interrupting at full-rated current and voltage
Grommet/Gasket: Buna-N
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
Screw Terminal Torque: 50 in-lb
Wire: 5
IEC Rating: 60309-1, 60309-2
Endurance: 250 cycles rated V and I load, 250 cycles no-load (100A)
NEMA Enclosure Type: 3R, 4X, 6P and 12
NOM: NOM ANCE standards
IP Rating: IP66, IP67, IP68, IP69K
UV Resistance: UV stabilized F1 rated housings
RoHS: RoHS compliant components
SCCR: 200kA
Terminal Screws: 303 Stainless Steel
Device Type: Inlet
Voltage: 277/480 VAC
Operating Temperature: -35C to +66C
Cable Clamp Screw Torque: 15 in-lb
Series: LEV Series
