Leviton 4100B5WLEV
4100B5WLEV Product Description

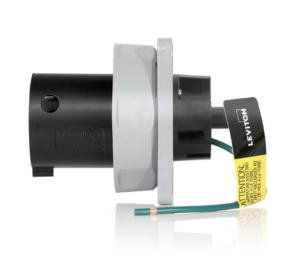

Leviton 100A, 125/250V 3-Phase, 3P, 4W, LEV Series Pin & Sleeve Inlet, Watertight, Black.
Specifications:
Brand: Leviton
Dielectric Voltage: 3000V for 1 min.
Operating Temperature: -35C to +66C
Conductor Range: 250 lbs for 1 min after -25 °C for 6 hrs
Configuration: North American
IP Rating: IP66, IP67, IP68, IP69K
SCCR: 200kA
RoHS Compliant: FALSE
Max. Voltage: 600V
NEMA Enclosure Type: 3R, 4X, 6P and 12
Clock Position: 12 o'clock
Series: LEV Series
Terminal Screws: 303 Stainless Steel
Pole: 3
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
Assembly Screws: 316 Stainless Steel
Hardware Head Type: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
Amperage: 100 A
Cable Clamp Screw Torque: 15 in-lb
Impact: Impact per UL1682, -25C 8 drops at minimum 30 inch height
RoHS: RoHS compliant components
Corrosion Resistance: Salt fog tested
Voltage: 600 VAC
Device Type: Inlet
Endurance: 250 cycles rated V and I load, 250 cycles no-load (100A)
Screw Terminal Torque: 50 in-lb
Grommet/Gasket: Buna-N
Contact Carrier: Glass filled Nylon
Temperature Rise: Max 30 °C rise at full rated current (after overload)
