Leviton 360C4WLEV
360C4WLEV Product Description

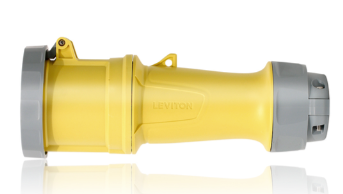

Leviton LEV Series Pin & Sleeve Connector, Watertight, 60A, 125V, 2P, 3W, Yellow Finish.
Specifications:
Brand: Leviton
Series: LEV Series
Grommet/Gasket: NBR/Buna N
Conductor Range: #8 AWG to #2 AWG
Configuration: North American
Clock Position: 4 o'clock
Terminal Screws: 303 Stainless Steel
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
NEMA Enclosure Type: 3R, 4X, 6P and 12
NOM: NOM ANCE standards
Contact Carrier: Glass filled Nylon
Overload UL20 Test: 50 cycles
RoHS: RoHS compliant components
SCCR: 200kA
Color: Yellow
Warranty: 5-Year Limited
Endurance: 2000 cycles total - 1000 cycles at Rated Current Voltage, 1000 cycles at no load
Wire: 3
IP Rating: IP66, IP67, IP68, IP69K
Pole: 2
Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
Max. Voltage: 600V
Device Type: Connector
Temperature Rise: Max 30 °C rise at full rated current (after overload)
Screw Terminal Torque: 50 in-lb
Corrosion Resistance: Salt fog tested
Amperage: 60 A
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
Housing: Impact Modified Nylon
Current Interrupting: Certified for current interrupting at full-rated current and voltage
Dielectric Voltage: 3000V for 1 min.
Assembly Screws: 303 Stainless Steel
Voltage: 125 VAC
Impact: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
