Leviton 35349-TFB
35349-TFB Product Description

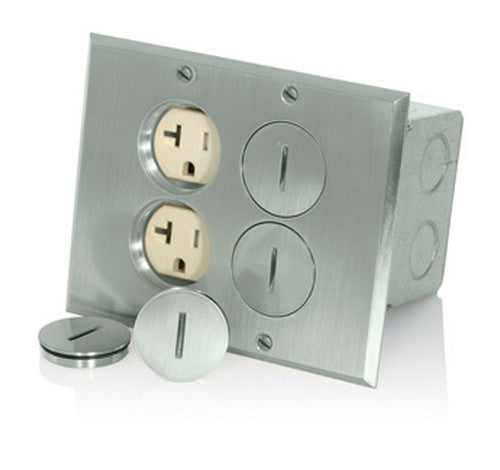

2-Gang Floor Box, 20 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Steel Strap, Nickel-Finish Plate - IVORY
For low profile, in-floor receptacle installations, our Floor Boxes are the perfect fit. Available in both 15 & 20 Amp configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
FEATURES:
Amperage: 20 A
Color: Ivory
NEMA: 5-20R
Voltage: 125 VAC
SPECIFICATIONS:
AC Horsepower Ratings
At Rated Voltage: 1 HP
Electrical
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C
Material
Body Material: Nylon
Clamp Nuts: Zinc-Plated Steel
Color: Ivory
Face Material: Nylon
Floorplate Material: Solid Brass 0.060 In Thick
Ground Clips: Brass-Plated
Grounding Screw: Brass 8-32
Line Contacts: Brass Triple-Wipe .031 Thick
Shutter Mechanism: Delrin® Acetal
Strap Material: Zinc-Plated Steel
Terminal Screws: Brass 8-32
Mechanical
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File E152105
NEMA: WD-6
NOM: 057
UL498: File E13399
Warranty: 10 Year Limited
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
