Leviton 3434-C
3434-C Product Description

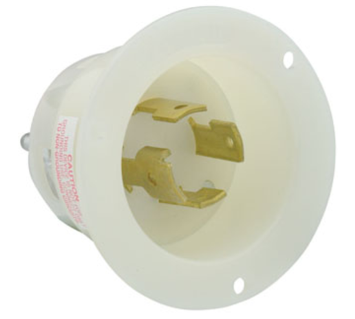

Leviton 30A, 120/208V 3-Phase Y, NEMA Non-NEMA, 4P, 4W, Flanged Inlet Locking Receptacle, Non-Grounding, White.
Specifications:
Brand: Leviton
NEMA: WD-6
Voltage: 120/208 VAC
Grounding Screw: Brass 8-32
Warranty: Limited Lifetime Warranty Warranty
Dielectric Voltage: Withstands 2000V per UL498
Body Material: Nylon
Current Limiting: Full Rated Current
Pole: 4
Environment: Dry
Color: White
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Flammability: Rated V-2 per UL 94
Brand: Black and White
Grounding: Non-Grounding
Operating Temperature: -40 °C to 60 °C
Terminal Accom.: 18-10 AWG
Amperage: 30 A
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Product ID: Ratings and NEMA I.D. permanently marked on device
Face Material: Nylon
Phase: 3-Phase WYE
Line Contacts: Solid Brass
Terminal Screws: Brass 10-32
Wire: 4
Strap Material: Thermoplastic Nylon
Termination: Back
RoHS Compliant: TRUE
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
