Leviton 3334-C
3334-C Product Description

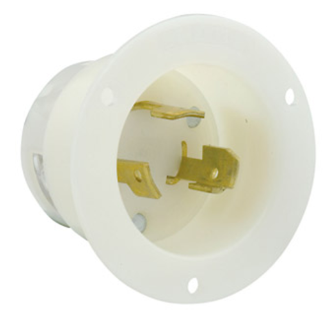

Leviton 330A, 125/250V NEMA Non-NEMA, 3P, 3W, Flanged Inlet Locking Receptacle, Non-Grounding, White.
Specifications:
Brand: Leviton
Strap Material: Thermoplastic Nylon
Terminal Screws: Brass 10-32
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts: Solid Brass
Face Material: Nylon
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Terminal Accom.: 18-10 AWG
Grounding Screw: Brass 8-32
RoHS Compliant: TRUE
Dielectric Voltage: Withstands 2000V per UL498
Voltage: 125/250 VAC
NEMA: WD-6
Color: White
Wire: 3
Warranty: Limited Lifetime Warranty Warranty
Current Limiting: Full Rated Current
Grounding: Non-Grounding
Pole: 3
Amperage: 30 A
Termination: Back
Brand: Black and White
NOM: 57
Body Material: Nylon
Product ID: Ratings and NEMA I.D. permanently marked on device
Environment: Dry
Operating Temperature: -40 °C to 60 °C
