Leviton 3333-GC
3333-GC Product Description

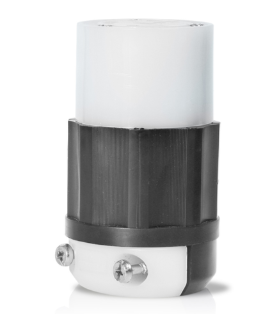

Leviton 30A, 250V Non-NEMA, 2P, 3W, Locking Connector, Grounding, Black/White Finish.
Specifications:
Brand: Leviton
Wire Gauge: 16-8 AWG
Wire Module: Nylon
Grounding: Grounding
Clamp Insert: Nylon
Terminal Screws: Brass
Wire: 3
Back Cover: Thermoplastic
Dielectric Voltage: Withstands 2000V per UL498
Blades/Contacts: Solid Brass
Pole: 2
Environment: Dry
Torque Range: 10-14 in-lbs
Assembly Screws: Steel, Zinc Plated
Body Material: Impact Modified Nylon
Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
RoHS Compliant: TRUE
Current Interrupting: Certified for current interrupting at full rated current
Color: Black-White
NEMA: WD-6
Amperage: 30 A
Cord-Clamp: Nylon
Product ID: Ratings and NEMA I.D. permanently marked on device
Voltage: 250 VAC
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Flammability: Rated HB or better UL94
Brand: Black and White
Terminal Accom.: 18-10 AWG
Operating Temperature: -40 °C to 60 °C
Cord Range: .385 - .860
