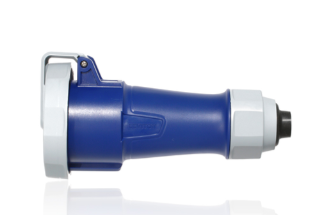

Leviton 330C6WLEVA LEV Series Pin & Sleeve Connector w/ Screwless Clamp Assembly, 30A, 250V, 2P, 3W, Blue Finish

Leviton 330C6WLEVA

330C6WLEVA Product Description

Specifications:

Brand: Leviton
Voltage: 250 VAC
Series: LEV Series
UV Resistance: UV stabilized F1 rated housings
IEC Rating: 60309-1, 60309-2
Assembly Screws: 303 Stainless Steel
RoHS Compliant: FALSE
Temperature Rise: Max 30 °C rise at full rated current (after overload)
Device Type: Connector
Feature: Screwless Clamp Assembly
Endurance: 1000 cycles rated V and I load, 1000 cycles no-load (30A)
Max. Voltage: 600V
Cable Clamp Screw Torque: 10 in-lb
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
RoHS: RoHS compliant components
Housing: Impact Modified Nylon
IP Rating: IP66, IP67, IP68, IP69K
SCCR: 200kA
Corrosion Resistance: Salt fog tested
Terminal Screws: 303 Stainless Steel
Conductor Range: #12 AWG to #8 AWG
Contact Carrier Assembly Screw Torque: 8 in-lb
Current Interrupting: Certified for current interrupting at full-rated current and voltage
Contact Carrier: Glass filled Nylon
Grommet/Gasket: NBR/Buna N
Screw Terminal Torque: 20 In-lb
Overload UL20 Test: 50 cycles
Hardware Head Type: Hex style socket screws for terminals, combination screws for all others
NEMA Enclosure Type: 3R, 4X, 6P and 12
Impact: Drop from 30" 8 times after conditioning to -25 °C, for 6 hoursDrop from 72" after conditioning to -35 °C, for 6 hours
Wire: 3
Crush Test: 250 lbs for 1 min after -25 °C for 6 hrs
Clock Position: 6 o'clock
Dielectric Voltage: 3000V for 1 min.
Color: Blue
Amperage: 30 A
Pole: 2
