Leviton 3100B7WLEV
3100B7WLEV Product Description

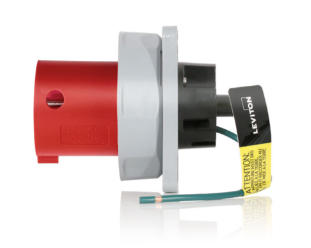

Leviton LEV Series 100A Pin and Sleeve Inlet, Watertight, 480V, 3-Phase, 2P, 3W, Red Finish.
Specifications:
Brand: Leviton
Conductor Range: 250 lbs for 1 min after -25 °C for 6 hrs
Terminal Screws: 303 Stainless Steel
Cable Clamp Screw Torque: 15 in-lb
conditioning to -35 °C, for 6 hours
IP Rating: IP66, IP67, IP68, IP69K
Pole: 2
Dielectric Voltage: 3000V for 1 min.
Corrosion Resistance: Salt fog tested
Impact: Impact per UL1682, -25C 8 drops at minimum 30 inch height
Clock Position: 7 o'clock
NOM: NOM ANCE standards
RoHS: RoHS compliant components
Housing: Impact Modified Nylon
Wire: 3
Operating Temperature: -35C to +66C
Endurance: 250 cycles rated V and I load, 250 cycles no-load (100A)
Series: LEV Series
Max. Voltage: 600V
Voltage: 480 VAC
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
SCCR: 200kA
Screw Terminal Torque: 50 in-lb
RoHS Compliant: FALSE
Device Type: Inlet
CE: CE certification
Temperature Rise: Max 30 °C rise at full rated current (after overload)
NEMA Enclosure Type: 3R, 4X, 6P and 12
Contact Carrier: Glass filled Nylon
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
Amperage: 100 A
UV Resistance: UV stabilized F1 rated housings
Crush Test: 302 Stainless Steel
Configuration: North American
NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
Grommet/Gasket: Buna-N
