Leviton 3100B4WLEV
3100B4WLEV Product Description

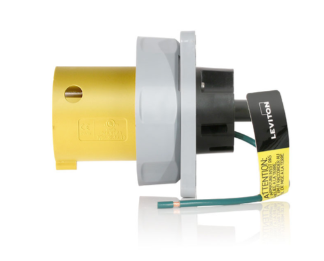

Leviton LEV Series 100A Pin and Sleeve Inlet, Watertight, 125V 3-Phase, 2P, 3W, Yellow.
Specifications:
Brand: Leviton
Pole: 2
Corrosion Resistance: Salt fog tested
Series: LEV Series
Crush Test: 302 Stainless Steel
Device Type: Inlet
RoHS: RoHS compliant components
Flammability: Rated V-0 (Contact Carrier), HB or better (Housing) per UL94
Cable Clamp Screw Torque: 15 in-lb
Current Interrupting: Certified for current interrupting at full-rated current and voltage
IEC Rating: 60309-1, 60309-2
Dielectric Voltage: 3000V for 1 min.
SCCR: 200kA
Terminal Screws: 303 Stainless Steel
Grommet/Gasket: Buna-N
Operating Temperature: -35C to +66C
Assembly Screws: 316 Stainless Steel
Screw Terminal Torque: 50 in-lb
Wire: 3
Contact Carrier: Glass filled Nylon
Amperage: 100 A
IP Rating: IP66, IP67, IP68, IP69K
RoHS Compliant: FALSE
Configuration: North American
Impact: Impact per UL1682, -25C 8 drops at minimum 30 inch height
Housing: Impact Modified Nylon
Product Markings: Brand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
Max. Voltage: 600V
Conductor Range: #6 AWG to #1 AWG
Voltage: 125 VAC
Temperature Rise: Max 30 °C rise at full rated current (after overload)
NEMA Enclosure Type: 3R, 4X, 6P and 12
Warranty: 5-Year Limited
Clock Position: 4 o'clock
Endurance: 250 cycles rated V and I load, 250 cycles no-load (100A)
