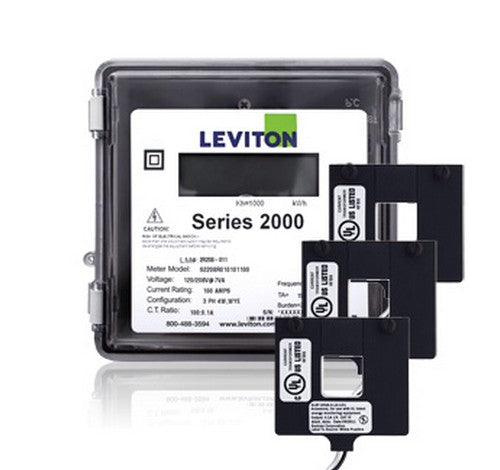

Leviton 2O208-12W Series 2000 3P/4W 1200A Outdoor kWh Meter Kit w/3 Split Core CTs 120 ~ 208V

2 sold in last 8 hours
LEVITON
2O208-12W
$630.00
$630.00
customers are viewing this product
The Leviton VerifEye™ Series 2000 line of revenue-grade meters meets all measurement and verification-based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 2000 meters are easy to specify and install for new construction and retrofits.

Leviton meters utilize highly accurate current transformers for revenue-grade performance certified to ANSI standards. Competing products use current sensors that do not provide the same level of performance. Leviton offers Current Transformers (CTs) in solid and split core styles to accommodate all phases of installation and construction.

Solid core CTs are ideal for new construction, when power is not live and wires can easily be threaded through the core. Split core CTs can be installed at any time without having to disconnect wire terminations, making them the optimal choice for retrofitting an existing structure.

Split core CTs close securely for fast, precise installation with no need for time-consuming tie wraps and no worries about improper seating or core half separation. Both solid and split core CTs offer high quality, long term accuracy and reliability.

Every Series 2000 meter has an installer-friendly feedback feature. The red reverse phase indicator acts as an installation diagnostics tool and illuminates if a meter is improperly installed. After installation, the green duty cycle light shows that the meter is collecting electrical consumption data at the appropriate rate. All 100 and 200 Amp solid core CTs have color-coded labels to easily identify correct line/load orientation.

FEATURES:

CTs Included: 3 Split Core CTs
Communication: Pulse Output
Enclosure: Outdoor (NEMA 4X)
Meter Configuration: Single Meter
Product Line: Series 2000 Kit

SPECIFICATIONS:

Amperage: 1200 A
Voltage: 120/208 VAC 3PH 4W
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
