Leviton 27W49
27W49 Product Description

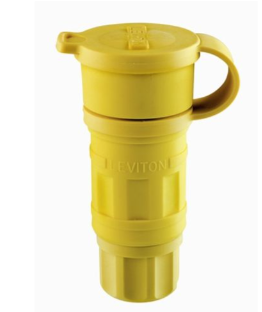

Leviton 20A, 277V NEMA L7-20R, 2P, 3W, Locking Connector, Grounding, Wetguard, Yellow.
Specifications:
Brand: Leviton
Color: Yellow
Operating Temperature: -40 °C to 60 °C
Country of Origin: Mexico
Body Material: EPTR Rubber
Brand: Wetguard
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Cord Grip Range (in): .375-.875
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Dielectric Voltage: Withstands 2000V per UL498
Bushing: Santoprene TPV
Current Limiting: Full Rated Current
Terminal Accom.: #16 to #10
Body Interior: Nylon
Product ID: Ratings and NEMA I.D. permanently marked on device
Device Type: Locking Connector
Compression Nut, Strain Relief: Nylon
Environment: Wet
Assembly Screws: Stainless Steel 300
RoHS Compliant: TRUE
NEMA: WD-6
Amperage: 20 A
Voltage: 277 VAC
Grounding: Grounding
Flammability: Rated V-2 per UL 94
Torque Range: 12-14 in-lbs
Wire: 3
Terminal Screws: Electroless Nickel-coated Brass
Pole: 2
Wire Module: Nylon
Blades/Contacts: Nickel-Plated Brass
