Leviton 27W08-G
27W08-G Product Description

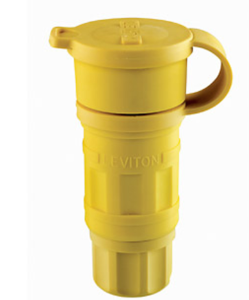

Leviton 20A-250V/ 10A-600V, Non-NEMA, 3P, 3W, Connector, Locking Blade, Grounding, Wetguard, Yellow Finish.
Specifications:
Brand: Leviton
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: #16 to #10
Dielectric Voltage: Withstands 2000V per UL498
Wire: 3
Grounding: Grounding
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Terminal Screws: Electroless Nickel-coated Brass
Assembly Screws: Stainless Steel, Non-Magnetic
Color: Yellow
Compression Nut, Strain Relief: Nylon
RoHS Compliant: TRUE
Bushing: Santoprene TPV
Current Limiting: Full Rated Current
Pole: 3
Wire Module: Nylon
Body Material: Santoprene TPV
Body Interior: Nylon
Warranty: Limited Lifetime Warranty Warranty
Device Type: Locking Connector
NEMA: WD-6
Amperage: 20 A
Voltage: 125/250 VAC
Operating Temperature: -40 °C to 60 °C
Flammability: Rated V-2 per UL 94
Cord Grip Range (in): .375-.875
Blades/Contacts: Electroless Nickel-coated Brass
Environment: Wet
