Leviton 27W08
27W08 Product Description

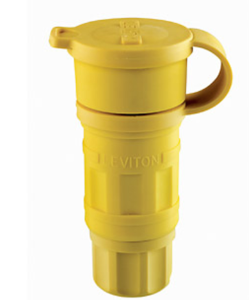

Leviton 20A, 125/250V Non-NEMA, 3P, 3W, Locking Connector, Non-grounding, Wetguard, Yellow.
Specifications:
Brand: Leviton
Body Material: Nylon
Color: Yellow
Enclosure Rating: NEMA 4, 4X, 6, 6P IEC IP66, IP67
Blades/Contacts: Electroless Nickel-coated Brass
Compression Nut, Strain Relief: Nylon
Pole: 3
Terminal Screws: Electroless Nickel-coated Brass
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Husk: Santoprene TPV
Voltage: 125/250 VAC
Device Type: Locking Connector
Cord Grip Range (in): .375-.875
Operating Temperature: -40 °C to 60 °C
NOM: 57
Amperage: 20 A
Terminal Accom.: #16 to #10
Warranty: Limited Lifetime Warranty Warranty
Flammability: Rated V-2 per UL 94
RoHS Compliant: TRUE
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Wire: 3
Assembly Screws: Stainless Steel, Non-Magnetic
Body Interior: Nylon
Bushing: Santoprene TPV
Environment: Wet
NEMA: WD-6
Product ID: Ratings and NEMA I.D. permanently marked on device
Current Limiting: Full Rated Current
Grounding: Non-Grounding
Dielectric Voltage: Withstands 2000V per UL498
Wire Module: Nylon
