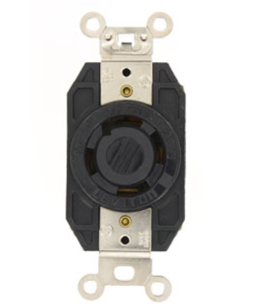

Leviton 2770
2770 Product Description
Leviton 30A, 347/600V 3PY, NEMA L20-30R, 4P, 4W, Flush Mtg Locking Receptacle, Non-Grounding, V-0-MAX, Black Finish.
Specifications:
Brand: Leviton
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Screw Terminal Torque: 14-18 in-lbs
Phase: 3-Phase WYE
Voltage: 347/600 VAC
Wire: 4
Grounding Screw: Chromated Brass
Body Material: Nylon
Termination: Back & Side
Terminal Clamps: Nickel-Plated Brass
Flammability: Rated V-0 per UL 94
Line Contacts: Brass
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Color: Black
Terminal Accom.: 14-8 AWG
Warranty: Limited Lifetime Warranty
Grounding: Non-Grounding
Operating Temperature: -40 °C to 60 °C
Cover Material: Valox 357
Terminal ID: Marked on Device
Ground Contacts: Brass
Pole: 4
Product ID: Ratings and NEMA I.D. permanently marked on device
Device Type: Locking Receptacle
Base Material: Nylon
Environment: Corrosive
Amperage: 30 A
Standards and Certifications: UL
Strap Material: Nickel-Plated Brass
RoHS Compliant: TRUE
Face Material: Nylon
Terminal Screws: Chromated Brass
NEMA: WD-1 & WD-6
