Leviton 2760
2760 Product Description

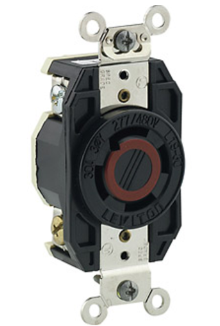

Leviton 30A, 277/480V 3-Phase Y, NEMA L19-30R, 4P, 4W, Flush Mtg Locking Receptacle, Non-Grounding, V-0-MAX, Black Finish.
Specifications:
Brand: Leviton
Pole: 4
RoHS Compliant: FALSE
Screw Terminal Torque: 14-18 in-lbs
Ground Contacts: Brass
Cover Material: Valox 357
Brand: V-0-Max
Standards and Certifications: UL
Dielectric Voltage: Withstands 2000V per UL498
Product ID: Ratings and NEMA I.D. permanently marked on device
Terminal ID: Marked on Device
Face Material: Ultramid
Terminal Clamps: Nickel-Plated Brass
Amperage: 30 A
Body Material: Nylon
Color: Black
Current Limiting: Full Rated Current
Flammability: Rated V-0 per UL 94
Line Contacts: Brass
Wire: 4
Environment: Corrosive
Grounding Screw: Chromated Brass
Base Material: Valox
Phase: 3-Phase WYE
Strap Material: Nickel-Plated Brass
Operating Temperature: -40 °C to 60 °C
Terminal Screws: Chromated Brass
Terminal Accom.: 14-8 AWG
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 277/480 VAC
Grounding: Non-Grounding
Termination: Back & Side
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
