Leviton 2756
2756 Product Description

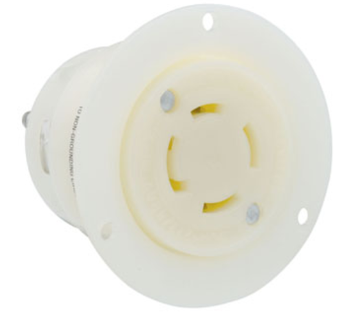

Leviton 30A, 120/208V 3-Phase Y, NEMA L18-30R, 4P, 4W, Flanged Outlet Locking Receptacle, Non-Grounding, White.
Specifications:
Brand: Leviton
Product ID: Ratings and NEMA I.D. permanently marked on device
Flammability: Rated V-2 per UL 94
Terminal Accom.: 18-10 AWG
Voltage: 120/208 VAC
Grounding: Non-Grounding
Dielectric Voltage: Withstands 2000V per UL498
Grounding Screw: Brass 8-32
Line Contacts: Solid Brass
Face Material: Nylon
Brand: Black and White
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Color: White
Terminal Screws: Brass 10-32
NOM: 57
Phase: 3-Phase WYE
Strap Material: Thermoplastic Nylon
Current Limiting: Full Rated Current
Pole: 4
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
NEMA: WD-6
Screw Terminal Torque: 10-14 in-lbs
Warranty: Limited Lifetime Warranty Warranty
Device Type: Locking Flanged Outlet
Termination: Back
Amperage: 30 A
At Rated Voltage: 3 HP
Wire: 4
Body Material: Nylon
Environment: Dry
Operating Temperature: -40 °C to 60 °C
