Leviton 2746
2746 Product Description

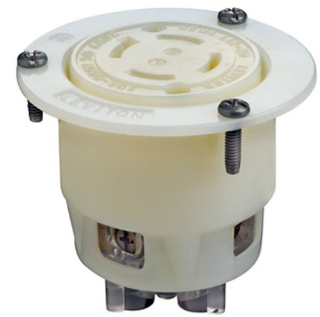

Leviton 30A, 600V 3-Phase, NEMA L17-30R, 3P, 4W, Flanged Outlet Locking Receptacle, Grounding, White.
Specifications:
Brand: Leviton
Body Material: Nylon
Color: White
Termination: Back
Screw Terminal Torque: 10-14 in-lbs
Product ID: Ratings and NEMA I.D. permanently marked on device
Brand: Black and White
Device Type: Locking Flanged Outlet
Strap Material: Thermoplastic Nylon
Terminal Accom.: 18-10 AWG
Terminal Screws: Brass 10-32
RoHS Compliant: TRUE
Amperage: 30 A
Dielectric Voltage: Withstands 2000V per UL498
Grounding Screw: Brass 8-32
NEMA: WD-6
Face Material: Nylon
Current Limiting: Full Rated Current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Operating Temperature: -40 °C to 60 °C
Voltage: 600 VAC
Environment: Dry
NOM: 57
Line Contacts: Solid Brass
Phase: 3-Phase
Flammability: Rated V-2 per UL 94
Pole: 3
Wire: 4
Grounding: Grounding
