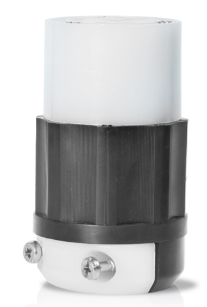

Leviton 2743
2743 Product Description
Leviton 30A, 600V 3-Phase, NEMA L17-30R, 3P, 4W, Locking Connector, Grounding, Black/White Finish.
Specifications:
Brand: Leviton
Wire: 4
NEMA: WD-6
Wire Gauge: 14-8 AWG
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 600 VAC
Blades/Contacts: Solid Brass
Assembly Screws: Steel, Zinc Plated
Clamp Insert: Nylon
Operating Temperature: -40 °C to 60 °C
Wire Module: Nylon
Environment: Dry
Phase: 3-Phase
Back Cover: Thermoplastic
Dielectric Voltage: Withstands 2000V per UL498
Current Interrupting: Certified for current interrupting at full rated current
Pole: 3
Body Material: Impact Modified Nylon
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Device Type: Locking Connector
Cord Range: .595 - 1.150
Terminal Accom.: 18-10 AWG
Terminal Screws: Brass
Grounding: Grounding
Torque Range: 10-14 in-lbs
Cord-Clamp: Nylon
Amperage: 30 A
Warranty: Limited Lifetime Warranty Warranty
Color: Black-White
