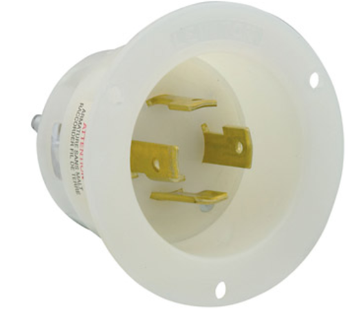

Leviton 2735
2735 Product Description
Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty.
Specifications:
Brand: Leviton
Voltage: 480 VAC
Amperage: 30 A
Flammability: Rated V-2 per UL 94
Wire: 4
Body Material: Nylon
Line Contacts: Solid Brass
Phase: 3-Phase
Pole: 3
Terminal Screws: Brass 10-32
Brand: Black and White
Grounding: Grounding
Grounding Screw: Brass 8-32
NOM: 57
Warranty: Limited Lifetime Warranty Warranty
Face Material: Nylon
At Rated Voltage: 10 HP
Termination: Back
Dielectric Voltage: Withstands 2000V per UL498
Environment: Dry
Color: White
Product ID: Ratings and NEMA I.D. permanently marked on device
Current Limiting: Full Rated Current
Operating Temperature: -40 °C to 60 °C
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Screw Terminal Torque: 10-14 in-lbs
Strap Material: Thermoplastic Nylon
NEMA: WD-6
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
