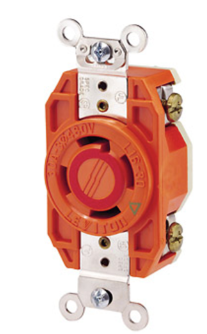

Leviton 2730-IG
2730-IG Product Description
Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications:
Brand: Leviton
Termination: Back & Side
Dielectric Voltage: Withstands 2000V per UL498
Color: Orange
Terminal ID: Marked on Device
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Product ID: Ratings and NEMA I.D. permanently marked on device
Screw Terminal Torque: 14-18 in-lbs
Grounding Screw: Chromated Brass
Pole: 3
Terminal Accom.: 14-8 AWG
Base Material: Valox
Phase: 3-Phase
Country of Origin: Mexico
Face Material: Valox
Body Material: Valox 357
Strap Material: Nickel-Plated Brass
Line Contacts: Brass
Cover Material: Valox 357
Operating Temperature: -40 °C to 60 °C
Feature: Isolated Ground
Environment: Corrosive
Ground Contacts: Brass
Terminal Screws: Chromated Brass
Brand: V-0-Max
Grounding: Isolated Ground
NEMA: WD-1 & WD-6
Wire: 4
RoHS Compliant: FALSE
Warranty: Limited Lifetime Warranty
At Rated Voltage: 10 HP
Current Limiting: Full Rated Current
Amperage: 30 A
Flammability: Rated V-0 per UL 94
Voltage: 480 VAC
Terminal Clamps: Zinc-Plated Brass
Ground Clips: Nickel-Plated Brass
