Leviton 2725
2725 Product Description

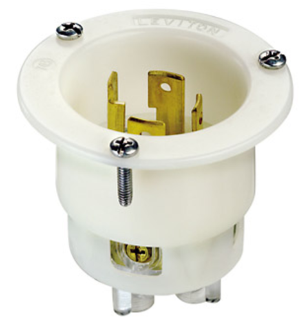

Leviton 30A, 250V 3-Phase, NEMA L15-30P, 3P, 4W, Flanged Inlet Locking Receptacle, Grounding, White Finish.
Specifications:
Brand: Leviton
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Current Limiting: Full Rated Current
Environment: Dry
NOM: 57
Wire: 4
Color: White
Strap Material: Thermoplastic Nylon
Terminal Accom.: 18-10 AWG
Phase: 3-Phase
Body Material: Nylon
Flammability: Rated V-2 per UL 94
Brand: Black and White
Line Contacts: Solid Brass
At Rated Voltage: 3 HP
Face Material: Nylon
Operating Temperature: -40 °C to 60 °C
Warranty: Limited Lifetime Warranty Warranty
NEMA: WD-6
Pole: 3
Screw Terminal Torque: 10-14 in-lbs
Product ID: Ratings and NEMA I.D. permanently marked on device
Voltage: 250 VAC
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Grounding Screw: Brass 8-32
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Device Type: Locking Flanged Inlet
Amperage: 30 A
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
