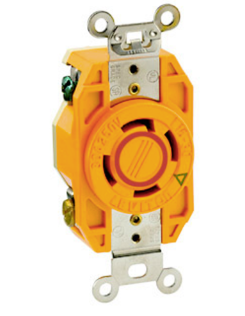

Leviton 2720-IG
2720-IG Product Description
Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications:
Brand: Leviton
Grounding: Isolated Ground
RoHS Compliant: TRUE
Base Material: Valox
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Ground Contacts: Brass
Environment: Corrosive
Phase: 3-Phase
Terminal Clamps: Zinc-Plated Brass
Flammability: Rated V-0 per UL 94
Feature: Isolated Ground
Body Material: Valox 357
Pole: 3
Ground Clips: Nickel-Plated Brass
NOM: 57
Grounding Screw: Chromated Brass
Strap Material: Nickel-Plated Brass
Wire: 4
Screw Terminal Torque: 14-18 in-lbs
Terminal Accom.: 14-8 AWG
Warranty: Limited Lifetime Warranty
Terminal Screws: Chromated Brass
Terminal ID: Marked on Device
Termination: Back & Side
Line Contacts: Brass
Color: Orange
Operating Temperature: -40 °C to 60 °C
Voltage: 250 VAC
Dielectric Voltage: Withstands 2000V per UL498
Amperage: 30 A
Current Limiting: Full Rated Current
Face Material: Valox
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
