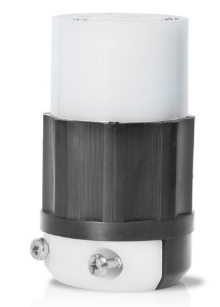

Leviton 2683
2683 Product Description
Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty.
Specifications:
Brand: Leviton
Wire: 3
Wire Module: Nylon
Current Interrupting: Certified for current interrupting at full rated current
NEMA: WD-6
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Amperage: 30 A
Back Cover: Thermoplastic
Environment: Dry
Color: Black-White
Dielectric Voltage: Withstands 2000V per UL498
Product ID: Ratings are permanently marked on device
RoHS Compliant: TRUE
Terminal Accom.: 18-10 AWG
Device Type: Locking Connector
Flammability: Rated HB or better UL94
Pole: 3
At Rated Voltage: 10 HP
Blades/Contacts: Solid Brass
Terminal Screws: Brass
Body Material: Impact Modified Nylon
Cord Range: .385 - .930
Brand: Black and White
Wire Gauge: 16-8 AWG
Clamp Insert: Nylon
Warranty: Limited Lifetime Warranty Warranty
Cord-Clamp: Nylon
Operating Temperature: -40 °C to 60 °C
Grounding: Non-Grounding
Assembly Screws: Steel, Zinc Plated
Phase: 3-Phase
NOM: 57
Voltage: 480 VAC
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
