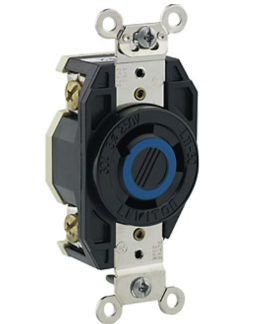

Leviton 2670 30A, 250V 3-Phase, NEMA L11-30R, 3P, 3W, Flush Mtg Locking Receptacle, Non-Grounding, V-0-MAX, Black

Leviton 2670

2670 Product Description

Specifications:

Brand: Leviton
Cover Material: Valox 357
Brand: V-0-Max
At Rated Voltage: 2 HP L-L/2 HP L-N
Device Type: Locking Receptacle
Voltage: 250 VAC
Operating Temperature: -40 °C to 60 °C
Terminal Clamps: Nickel-Plated Brass
Grounding Screw: Chromated Brass
Flammability: Rated V-0 per UL 94
Grounding: Non-Grounding
Product ID: Ratings and NEMA I.D. permanently marked on device
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Termination: Back & Side
Terminal Accom.: 14-8 AWG
UL Fed Spec: W-C-596
Terminal ID: Marked on Device
Current Limiting: Full Rated Current
ANSI: C-73
Environment: Corrosive
Wire: 3
Terminal Screws: Chromated Brass
