Leviton 2663
2663 Product Description

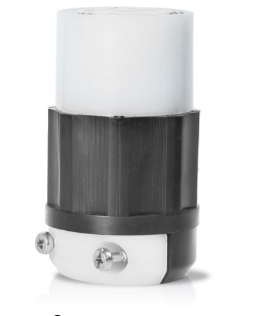

Leviton Locking Connector, 30A, 125/250V Industrial Grade, Black/White.
Specifications:
Brand: Leviton
Amperage: 30 A
Wire: 3
Brand: Black and White
RoHS Compliant: TRUE
Grounding: Non-Grounding
Wire Module: Nylon
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Blades/Contacts: Solid Brass
Terminal Screws: Brass
Voltage: 125/250 VAC
Dielectric Voltage: Withstands 2000V per UL498
Pole: 3
Body Material: Impact Modified Nylon
Terminal Accom.: 18-10 AWG
Environment: Dry
Cord-Clamp: Nylon
Operating Temperature: -40 °C to 60 °C
Wire Gauge: 16-8 AWG
Assembly Screws: Steel, Zinc Plated
Device Type: Locking Connector
Cord Range: .385 - .930
NEMA: WD-6
Current Interrupting: Certified for current interrupting at full rated current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Color: Black-White
