Leviton 2660
2660 Product Description

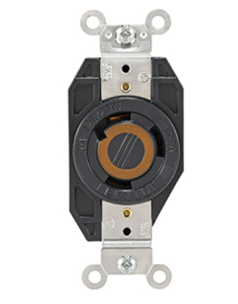

Leviton 30A, 125/250V NEMA L10-30R, 3P, 3W, Flush Mtg Locking Receptacle, Non-Grounding, V-0-MAX, Black Finish.
Specifications:
Brand: Leviton
Yoke: Nickel-Plated Brass .050 Thick
Amperage: 30 A
Strap Material: Nickel-Plated Brass
Terminal ID: Marked on Device
Base Material: Nylon
Ground Contacts: Brass
Terminal Accom.: 14-8 AWG
Grounding: Non-Grounding
Standards and Certifications: UL
Face Material: Nylon
Body Material: Nylon
Grounding Screw: Chromated Brass
Cover Material: Valox 357
Terminal Screws: Chromated Brass
At Rated Voltage: 2 HP L-L/2 HP L-N
Flammability: Rated V-0 per UL 94
Operating Temperature: -40 °C to 60 °C
Voltage: 125/250 VAC
Terminal Clamps: Nickel-Plated Brass
Warranty: Limited Lifetime Warranty
Color: Black
Dielectric Voltage: Withstands 2000V per UL498
Line Contacts: Brass
Pole: 3
Wire: 3
Screw Terminal Torque: 14-18 in-lbs
Device Type: Locking Receptacle
Current Limiting: Full Rated Current
Brand: V-0-Max
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Termination: Back & Side
