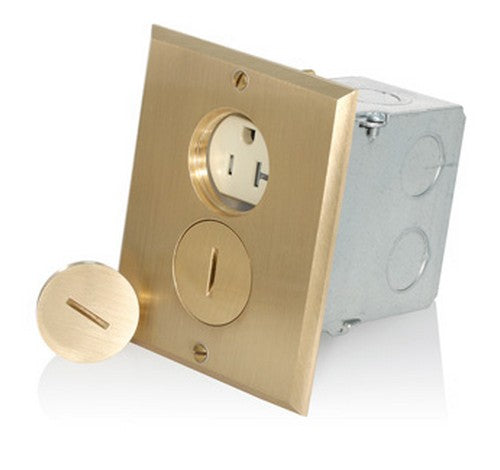

Leviton 25349-TFB Tamper-Resistant Floor Box Duplex Receptacle 15A / 125 V

2 sold in last 8 hours
LEVITON
25349-TFB
$69.00
$69.00
customers are viewing this product
Gang Floor Box Receptacle Assembly, 20 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Steel Strap, Brass-Finish Plate - IVORY

For low profile, in-floor receptacle installations, our Floor Box Receptacle Assemblies are the perfect fit. Available in both 15 & 20 Amp 1- and 2-gang configurations, these devices are suitable for wood frame construction with carpet, wood, tile, and vinyl finished flooring. Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.

FEATURES:

Amperage: 20 A
Color: Ivory
NEMA: 5-20R
Voltage: 125 VAC

SPECIFICATIONS:

AC Horsepower Ratings
At Rated Voltage: 1 HP

Electrical
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3

Environmental
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material
Body Material: Nylon
Clamp Nuts: Zinc-Plated Steel
Color: Ivory
Face Material: Nylon
Floorplate Material: Solid Brass 0.060 In Thick
Ground Clips: Brass-Plated
Grounding Screw: Brass 8-32
Line Contacts: Brass Triple-Wipe .031 Thick
Shutter Mechanism: Delrin® Acetal
Strap Material: Zinc-Plated Steel
Terminal Screws: Brass 8-32

Mechanical
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File E152105
NEMA: WD-6
NOM: 057
UL498: File E13399
Warranty: 10 Year Limited
