Leviton 2525
2525 Product Description

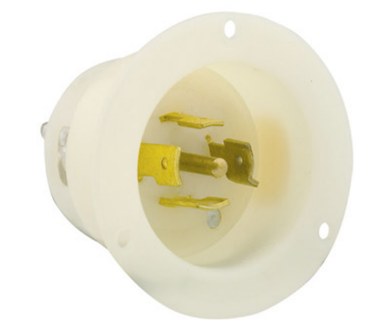

20A, 277/480V 3-Phase Y, NEMA L22-20P, 4P, 5W, Flanged Inlet Locking Receptacle, Grounding (White)
Specifications:
SKU: 2525
Brand: Leviton
Body Material: Nylon
Screw Terminal Torque: 10-14 in-lbs
Face Material: Nylon
Line Contacts: Solid Brass
Phase: 3-Phase WYE
Grounding Screw: Brass 8-32
Operating Temperature: -40 °C to 60 °C
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Terminal Screws: Brass 10-32
CSA C22.2 No. 42: File LR-406
Strap Material: Thermoplastic Nylon
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Grounding: Grounding
NOM: 57
Color: White
Product ID: Ratings and NEMA I.D. permanently marked on device
Flammability: Rated V-2 per UL 94
Termination: Back
Voltage: 277/480 VAC
Terminal Accom.: 18-10 AWG
Device Type: Locking Flanged Inlet
Dielectric Voltage: Withstands 2000V per UL498
Warranty: Limited Lifetime Warranty
Brand: Black and White
NEMA: WD-6
Amperage: 20 A
UL498: File E13393
At Rated Voltage: 5 HP
ANSI: C-73
Pole: 4
Current Limiting: Full Rated Current
UL Fed Spec WC-596: File E13393
Wire: 5
RoHS Compliant: TRUE
Environment: Dry
