Leviton 25249-TFB
25249-TFB Product Description

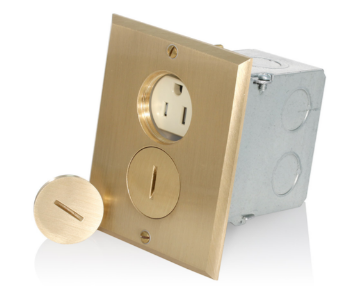

1-Gang Floor Box Receptacle, 15A 125V 2P 3W Tamper Proof, Straight Blade, Brass Plate (Ivory)
Specifications:
SKU: 25249-TFB
Brand: Leviton
Ground Clips: Brass-Plated
Wire: 3
Pole: 2
Line Contacts: Brass Triple-Wipe .031 Thick
Grounding: Self-Grounding
Operating Temperature: -40 °C to 60 °C
Product ID: Ratings are permanently marked on device
RoHS Compliant: FALSE
Dielectric Voltage: Withstands 2000V per UL498
Type: Wood Frame
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Certification/Listing: cCSAus, NOM-ANCE
Strap Material: Zinc-Plated Steel
At Rated Voltage: 1/2 HP
Terminal Accom.: 14-10 AWG
Grounding Screw: Brass 8-32
Terminal Screws: Brass 8-32
Voltage: 125 VAC
Amperage: 15 A
Shutter Mechanism: Delrin Acetal
ANSI: C-73
NEMA: WD-1 & WD-6
Clamp Nuts: Zinc-Plated Steel
Face Material: Nylon
Termination: Back & Side
Body Material: Nylon
Applicable Standards: UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Color: Ivory
Flammability: Rated V-2 per UL 94
Current Limiting: Full Rated Current
Floorplate Material: Solid Brass 0.060 In Thick
