Leviton 2515
2515 Product Description

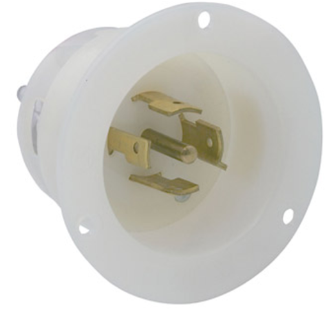

Leviton 20A, Flanged Inlet Locking Receptacle, Industrial Grade.
Specifications:
Brand: Leviton
Phase: 3-Phase WYE
Color: White
Terminal Screws: Brass 10-32
Flammability: Rated V-2 per UL 94
Wire: 5
Strap Material: Thermoplastic Nylon
Line Contacts: Solid Brass
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Dielectric Voltage: Withstands 2000V per UL498
Pole: 4
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
RoHS Compliant: TRUE
Warranty: Limited Lifetime Warranty
Current Limiting: Full Rated Current
Termination: Back
Operating Temperature: -40 °C to 60 °C
Voltage: 120/208 VAC
Screw Terminal Torque: 10-14 in-lbs
NOM: 57
Amperage: 20 A
Terminal Accom.: 18-10 AWG
