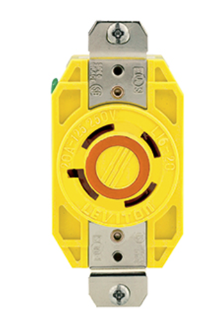

Leviton 24CM-30
24CM-30 Product Description
Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications:
Brand: Leviton
Phase: 3-Phase
Terminal Accom.: 14-8 AWG
Wire: 4
Line Contacts: Nickel-Plated Brass
Cover Material: Valox 357
NEMA: WD-1 & WD-6
NOM: 57
Strap Material: Nickel-Plated Brass
Ground Contacts: Nickel-Plated Brass
Termination: Back
Operating Temperature: -40 °C to 60 °C
Screw Terminal Torque: 10-14 in-lbs
At Rated Voltage: 5 HP
Base Material: Nylon
Color: Yellow
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
Voltage: 480 VAC
Terminal Clamps: Nickel-Plated Brass
Face Material: Nylon
Product ID: Ratings and NEMA I.D. permanently marked on device
Amperage: 20 A
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Pole: 3
Warranty: Limited Lifetime Warranty
Body Material: Valox 357
Terminal ID: Marked on Device
RoHS Compliant: FALSE
Terminal Screws: Nickel-Plated Brass
Current Limiting: Full Rated Current
Flammability: Rated V-0 per UL 94
Environment: Corrosive
Brand: V-0-Max
Grounding Screw: Chromated Brass
