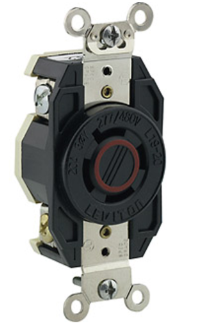

Leviton 2450
2450 Product Description
Leviton 20A, 277/480V 3-Phase Y, NEMA L19-20R, 4P, 4W, Flush Mtg Locking Receptacle, Non-Grounding, V-0-MAX, Black Finish.
Specifications:
Brand: Leviton
Voltage: 277/480 VAC
UL Fed Spec: W-C-596
Strap Material: Nickel-Plated Brass
Ground Contacts: Brass
Grounding Screw: Chromated Brass
Terminal Screws: Chromated Brass
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Operating Temperature: -40 °C to 60 °C
Color: Black
Wire: 4
Face Material: Ultramid
Terminal Accom.: 14-8 AWG
Pole: 4
Warranty: Limited Lifetime Warranty
Body Material: Nylon
Line Contacts: Brass
Phase: 3-Phase WYE
Terminal ID: Marked on Device
NOM: 57
Flammability: Rated V-0 per UL 94
Amperage: 20 A
RoHS Compliant: FALSE
Screw Terminal Torque: 14-18 in-lbs
Termination: Back & Side
UL: 498
Dielectric Voltage: Withstands 2000V per UL498
Cover Material: Valox 357
NEMA: WD-1 & WD-6
Current Limiting: Full Rated Current
Brand: V-0-Max
Terminal Clamps: Nickel-Plated Brass
Grounding: Non-Grounding
Environment: Corrosive
Base Material: Valox
Product ID: Ratings and NEMA I.D. permanently marked on device
Device Type: Locking Receptacle
