Leviton 2443
2443 Product Description

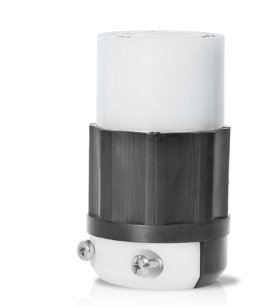

Leviton 20A, 120/208V 3-Phase Y, NEMA L18-20R, 4P, 4W, Locking Connector, Non-Grounding, Black/White Finish.
Specifications:
Brand: Leviton
Operating Temperature: -40 °C to 60 °C
Terminal Screws: Brass
Body Material: Impact Modified Nylon
Environment: Dry
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Product ID: Ratings are permanently marked on device
Grounding: Non-Grounding
Pole: 4
Current Interrupting: Certified for current interrupting at full rated current
NEMA: WD-6
Wire Gauge: 14-10 AWG
Clamp Insert: Nylon
Cord Range: .595 - .895
Cord-Clamp: Nylon
Amperage: 20 A
At Rated Voltage: 2 HP
Voltage: 120/208 VAC
Device Type: Locking Connector
Phase: 3-Phase WYE
RoHS Compliant: TRUE
Terminal Accom.: 18-10 AWG
UL Fed Spec WC-596: File E13393
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Flammability: Rated HB or better UL94
Warranty: Limited Lifetime Warranty
Assembly Screws: Steel, Zinc Plated
Wire: 4
Dielectric Voltage: Withstands 2000V per UL498
UL498: File E13393
Torque Range: 10-14 in-lbs
Back Cover: Thermoplastic
Blades/Contacts: Solid Brass
Brand: Black and White
Wire Module: Nylon
Color: Black-White
NOM: 57
