Leviton 2425
2425 Product Description

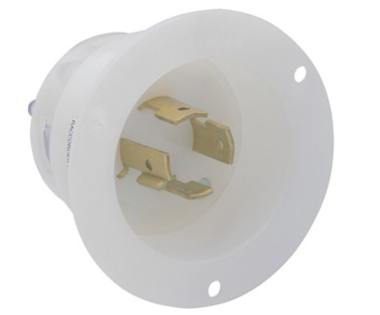

Leviton 20A, 250V 3-Phase, NEMA L15-20P, 3P, 4W, Flanged Inlet Locking Receptacle, Grounding, White Finish.
Specifications:
Brand: Leviton
At Rated Voltage: 3 HP
Screw Terminal Torque: 10-14 in-lbs
Body Material: Nylon
Flammability: Rated V-2 per UL 94
Face Material: Nylon
Voltage: 250 VAC
Dielectric Voltage: Withstands 2000V per UL498
Phase: 3-Phase
Terminal Accom.: 18-10 AWG
Termination: Back
Current Limiting: Full Rated Current
NOM: 57
Wire: 4
Device Type: Locking Flanged Inlet
Operating Temperature: -40 °C to 60 °C
Color: White
Environment: Dry
UL498: File E13393
Strap Material: Thermoplastic Nylon
Grounding Screw: Brass 8-32
Amperage: 20 A
Product ID: Ratings and NEMA I.D. permanently marked on device
Pole: 3
Warranty: Limited Lifetime Warranty
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Grounding: Grounding
NEMA: WD-6
RoHS Compliant: TRUE
Terminal Screws: Brass 10-32
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Line Contacts: Solid Brass
