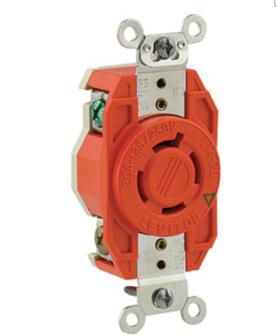

Leviton 2410-IG
2410-IG Product Description
Specifications:
Brand: Leviton
Termination: Back & Side
Color: Orange
Current Limiting: Full Rated Current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Dielectric Voltage: Withstands 2000V per UL498
Voltage: 125/250 VAC
Warranty: Limited Lifetime Warranty Warranty
Yoke: Nickel-Plated Brass .050 Thick
Wire: 4
Feature: Isolated Ground
ANSI: C-73
Grounding Screw: Brass 8-32
NEMA: WD-6
Terminal ID: Brass-Hot, Green-Ground, White-Neutral
Face Material: Valox
CSA C22.2 No. 42: File LR-406
RoHS Compliant: TRUE
Product ID: Ratings and NEMA I.D. permanently marked on device
Screw Terminal Torque: 14-18 in-lbs
Terminal Accom.: 14-8 AWG
Strap Material: Nickel-Plated Brass
Base Material: Valox
NOM: 57
Environment: Corrosive
Line Contacts: Brass .040 Thick
Amperage: 20 A
Flammability: Rated V-0 per UL 94
Grounding: Isolated Ground
Operating Temperature: -40 °C to 60 °C
Standards and Certifications: UL/CSA
Terminal Screws: Brass 10-32
Pole: 3
