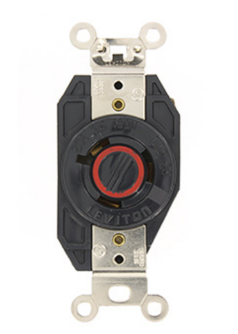

Leviton 2380 20A, 480V 3-Phase, NEMA L12-20R, 3P, 3W, Flush Mtg Locking Receptacle, Non-Grounding (Black)

Leviton 2380

2380 Product Description

20A, 480V 3-Phase, NEMA L12-20R, 3P, 3W, Flush Mtg Locking Receptacle, Non-Grounding (Black)

Specifications:

SKU: 2380
Brand: Leviton
Wire: 3
Termination: Back & Side
Country of Origin: Mexico
NEMA: WD-1 & WD-6
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Flammability: Rated V-0 per UL 94
Terminal Clamps: Nickel-Plated Brass
Color: Black
Brand: V-0-Max
Device Type: Locking Receptacle
Ground Contacts: Brass
RoHS Compliant: FALSE
Warranty: Limited Lifetime Warranty
UL: 498
Operating Temperature: -40 °C to 60 °C
Phase: 3-Phase
Amperage: 20 A
Strap Material: Nickel-Plated Brass
Cover Material: Valox 357
CSA: C22.2 No. 42
Terminal ID: Marked on Device
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
UL Fed Spec: W-C-596
Screw Terminal Torque: 14-18 in-lbs
ANSI: C-73
At Rated Voltage: 5 HP
NOM: 57
Grounding Screw: Chromated Brass
Face Material: Nylon
Base Material: Nylon
Body Material: Nylon
Environment: Corrosive
Terminal Screws: Chromated Brass
Terminal Accom.: 14-8 AWG
Grounding: Non-Grounding
Line Contacts: Brass
Product ID: Ratings and NEMA I.D. permanently marked on device
Voltage: 480 VAC
Pole: 3
