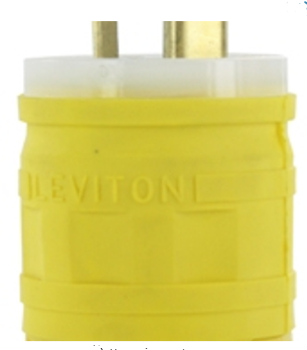

Leviton 1448
1448 Product Description
Specifications:
Brand Name: Leviton
Device Type: Straight Blade Plug
Dielectric Voltage: Withstands 2000V per UL498
Compression Nut, Strain Relief: Nylon
Wire Module: Thermoplastic
Grounding: Grounding
Operating Temperature: -40 °C to 60 °C
UL: 498
Terminal Screws: Brass
Terminal Accom.: 18-10 AWG
Amperage: 20 A
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Body Material: Santoprene TPV
Environment: Dry
Pole: 2
Cord Range: .375 - .655
Brand: Dustguard
Flammability: Rated V-2 per UL 94
Color: Yellow
Voltage: 250 VAC
NEMA: WD-6
Blades/Contacts: Solid Brass
Assembly Screws: Steel, Zinc Plated
ANSI: C-73
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Bushing: Santoprene TPV
Wire: 3
NOM: 57
Current Limiting: Full Rated Current
RoHS Compliant: TRUE
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
