Keystone KTLD-12-UV-SC500-56-VDIM-AF1 /USB

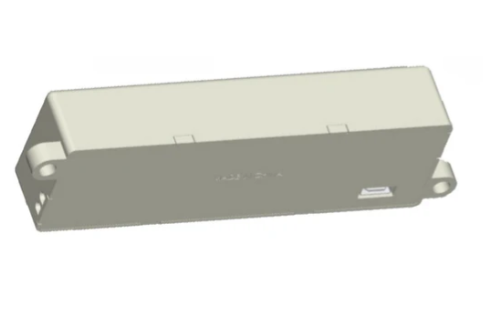

KTLD-12-UV-SC500-56-VDIM-AF1 /USB Product Description

This is the Constant Current LED Driver. The Rated Output Current is 120-500mA. The 12 watts of output power is a 0-10 V Dimmable LED driver. The input voltage is 120-277V and has a Power Factor >0.9. The physical dimensions are 4.89" long by 1.30" wide by 0.79" high.

Specifications:

Brand:    Keystone
SKU    KTLD-12-UV-SC500-56-VDIM-AF1 /USB
UPC    843654140803
Lighting Technology    LED
Driver Type    Constant Current
Wattage    12 Watts
Input Voltage    120-277VAC
Voltage Output    10-56V
Current Output    120-500mA
Frequency    50/60Hz
Dimmable    Yes, 0-10V
Power Factor    >0.9
THD (Total Harmonic Distortion)    <20%
Operating Temperature    -40ºC/-40ºF to 60ºC/140ºF
Max Case Temperature    90ºC/194ºF
Dimensions    4.89" L x 1.30" W x 0.79" H
Certifications    Class B, FCC Compliant, RoHS Compliant
Warranty    5 Year Standard
