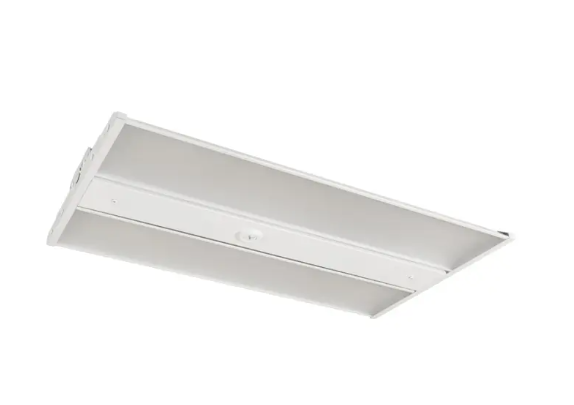

Keystone KT-HBLED215PS-2FB-8CSD-VDIM-P

KT-HBLED215PS-2FB-8CSD-VDIM-P Product Description

This versatile linear LED high bay fixture delivers powerful illumination for commercial and industrial lighting applications. With field-adjustable wattage and color temperature settings, it offers customized lighting solutions without requiring multiple fixture types. The compact design with smooth diffused lens ensures visual comfort while V-hook and chain mounting accessories enable quick installation in various ceiling configurations.

Features:

Field-adjustable wattage: select between 215W/175W/135W to customize light output for specific applications
Selectable CCT: choose between 4000K/5000K to create the ideal environment for different tasks
Outputs 30,600 lumens with 80+ CRI and efficacy up to 155 lm/W
V-hook and chain mounting accessories included for versatile installation options
Smooth diffused frosted lens eliminates glare for superior visual comfort
IP65 rated for damp locations with operating temperature range of -40°F to 122°F
120-277V operation with 0-10V dimming capability and dim-to-off functionality
Built-in port accepts quick-install sensors with no wiring required
100,000 hour rated life backed by a 10-year limited warranty

Specifications:

Product Category:    Hi-Bay - Linear
Brand:    Keystone
Manufacturer Part Number:    KT-HBLED215PS-2FB-8CSD-VDIM-P
Lumens:    30,600 Lumens
Wattage:    215 Watts
Input Voltage:    120-277V
Dimmable:    0-10V
Color Temperature:    4000K, 5000K
Color:    White
Rated Hours:    50,000 Hours
Min Operating Temp:    -40 Degrees F
CRI:    80+
Special Features:    CCT Selectable, Sensor Ready, Wattage Selectable
Length:    24.8"
Width:    11.81"
Height:    1.89"
