Keystone KT-EMRG-LED-5C-500-K1-IP

KT-EMRG-LED-5C-500-K1-IP Product Description

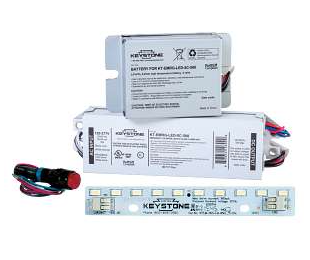

Keystone KT-EMRG-LED-5C-500-K1-IP LED Emergency Back-Up Kit, 5W Constant Wattage Driver and .7in x 8in LED Module, Approx 500 Lumens. 120-277V Input. Remote Compact Battery Pack. CEC T20 Compliant. Includes Instructions, Test Switch and Wiring Accessories

Electrical Specifications:

Input voltage range 120 –277Vac ± 10%
Frequency 50/60Hz
Power factor > 0.5 under 120 –277Vac input
Inrush current 7A @ 230V
Max input current 50mA @ 120V, 35mA @ 240V, and 30mA @ 277V
THD < 200% under 120 –277Vac input
Output voltage 20 –60Vdc Class 2 compliant. Remarks: the output power is valid for output voltage ≤ 58V; above that power will drop
Output current 250mA @ 20Vdc, 86mA @ 58Vdc
Output power 5W (constant), 500 lumens
Turn-on Delay Time < 1s
Overshoot < 10%
Ripple & Noise (pk–pk) < 10%
Withstand voltage Input to output, 2800Vdc, 2mA
Leakage current Maximum 0.5mA at 277Vac, 60Hz input
Protection
Over voltage protection: Hiccup mode. Protection will trigger when load voltage exceeds specified output voltage and will auto-recover after the
fault mode is removed.
Over current protection: Hiccup mode. Protection will trigger when load current exceeds specified output current and will auto-recover after
the fault mode is removed.
Short circuit protection: Hiccup mode. Protection will trigger when short circuit occurs and will auto-recover after the fault mode is removed.
Over temperature protection: Protection will trigger when driver overheats and auto-recover when cooled down.
Emergency Operation 90 minutes
Battery High-temperature, maintenance-free, LiFePO4 battery, 9.6Vdc, 3 cell
Recharge Time 24 hours
Battery Charging Current 307mA
