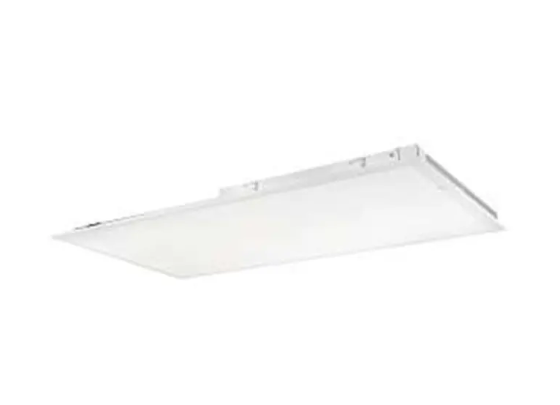

Keystone KT-BPLED45PS-24C-8CSA-VDIM-EM8 2x4 LED Backlit Panel - 5,650 Max Lumens - Wattage & CCT Selectable - Battery Backup - 120-277V

Keystone KT-BPLED45PS-24C-8CSA-VDIM-EM8

KT-BPLED45PS-24C-8CSA-VDIM-EM8 Product Description

This Keystone LED panel delivers high-performance illumination for commercial offices, retail spaces, and institutional facilities. Featuring dual Power Select and Color Select technology with integrated emergency backup, it provides comprehensive lighting solutions without requiring separate emergency fixtures. The complete pre-wired design with built-in test switch simplifies installation while ensuring code compliance.

Features:

2x4 LED panel design with integrated 8W emergency backup for recessed installations in commercial environments
Field-adjustable wattage: choose between 30W/35W/45W to customize light output for specific applications
Field-adjustable CCT: adjust between 3500K/4000K/5000K to create the ideal environment for different tasks
Maximum output of up to 5,650 lumens with 80+ CRI and efficacy up to 140 lm/W
Suitable for recessed or surface mount with IC rating for direct insulation contact
Construction features precise optical lenses over each individual LED for optimal light diffusion and consistent surface illumination
120-277V operation
Damp location rated with operating temperature range of -4°F to 104°F
Built-in 8W LED SmartSafe emergency driver with integrated test switch, CEC T20 compliant
Over 50% energy savings compared to traditional fluorescent troffers with 100,000 hour rated life

Specifications:

Brand:    Keystone
Manufacturer Part Number:    KT-BPLED45PS-24C-8CSA-VDIM-EM8
UPC:    843654166933
Lumens:    5,650 Lumens
Wattage:    45 Watts
Input Voltage:    120-277V
Dimmable:    0-10V
Color Temperature:    3500K, 4000K, 5000K
Color:    White
Rated Hours:    100,000 Hours
Min Operating Temp:    -4 Degrees F
CRI:    80+
Special Features:    Battery Backup, CCT Selectable, Wattage Selectable
Length:    47.71"
Width:    23.74"
Height:    1.47"

About Keystone:

At Keystone Technologies, we believe lighting should be simple, hassle-free, and enjoyable. That's why we offer a full range of high-quality lighting solutions, including LED lamps, fixtures, and controls, designed for performance, reliability, and ease of use. With a focus on innovation and customer satisfaction, Keystone is committed to delivering products that make lighting smarter, more efficient, and better for every environment—from commercial spaces to residential settings. Our mission is to "Light Made Easy," and we bring that philosophy to everything we do.
