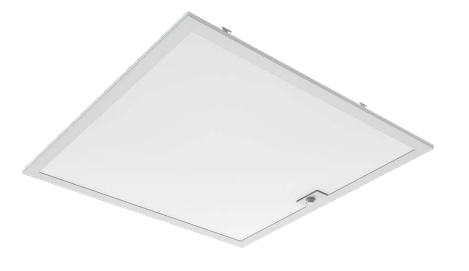

Keystone KT-BPLED40PS-22B-8CSA-VDIM /FC2 2x2 LED Panel feat. Power Select & Color Select with Embedded Smartloop PIR Sensor. 40/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design.

Keystone KT-BPLED40PS-22B-8CSA-VDIM /FC2

KT-BPLED40PS-22B-8CSA-VDIM /FC2 Product Description

2x2 LED Panel feat. Power Select & Color Select with Embedded Smartloop PIR Sensor l 40/30/20W l 120-277V Input l 3500/4000/5000K l 0-10V Dimming l Backlit Design

Features:

• Keystone Power Select technology (40/30/20W). Adjust power
between 40/30/20W, changing lumen output to set high end trim.
• Keystone Color Select Technology. Adjustable CCT (3500/4000/5000K)
• Features integrated Keystone SmartLoop Bluetooth™ mesh wireless
sensor controller.
• The sensor controller may be used “out of the box” as a stand alone
sensor (pre-commissioned, see page 2 for details); or may be
commissioned using the SmartLoop app to add advanced functions
such as zoning, high end trim, configure occupancy/vacancy behavior,
create scenes, and set schedules.
• Fits all standard T-grid ceilings. Surface and suspension mount options
• Construction features precise optical lenses over each
individual LED offering optimal light diffusion and consistent
surface illumination
• Compatible with Keystone SmartSafe LED emergency
backup
• Powered by Keystone 0-10V dimmable LED driver with built
in junction box with (4) available 1/2” K/O’s
• Operating temp range: -20°C/-4°F to 40°C/104°F
• Suitable for damp locations
• Nearly 70% energy saving savings compared to traditional
fluorescent troffers without controls
• LED chip lifetime: L70 >100,000 hours @ 25ºC/77ºF ambient
fixture temperature

Specifications:

Brand:    Keystone
SKU: KT-BPLED40PS-22B-8CSA-VDIM /FC2
Wattage:30W
CCT:3500k/4000k/5000k
Lumens:3400lm/3500lm/3450lm
Efficacy:111lm/W/ 117lm/W/ 115lm/W
Input Voltage:120-277V
CRI>80
Power Factor>0.9
