Keystone HPS-100X-Q-KIT 1/3

HPS-100X-Q-KIT 1/3 Product Description

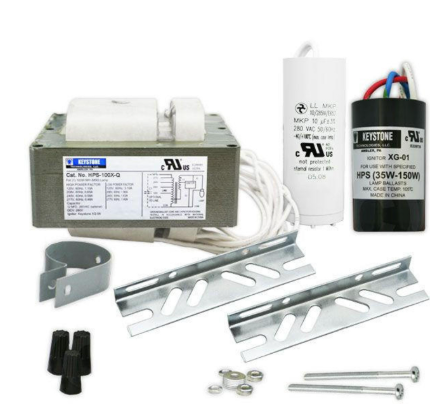

Keystone Technologies HPS-100X-Q-KIT is a 100W high pressure sodium (HPS) replacement ballast kit, designed for quad-tap operation (120/208/240/277V). This ballast features a HX-HPF circuit for efficient and stable lamp performance. The kit includes a pre-wired capacitor and ignitor (if required), as well as mounting hardware and an installation guide for easy setup. With copper windings and a 180°C insulation class, this ballast ensures long-lasting durability for commercial and industrial lighting applications.

Features:

Lamp Compatibility: Operates 100W HPS lamps (ANSI S54)
Input Voltage: Quad Tap (120/208/240/277V)
Circuit Type: HX-HPF (High Power Factor)
Power Factor: High Power Factor (HPF)
Pre-Wired Components: Includes capacitor and ignitor (if required)
Maximum Distance to Lamp: 10 ft.
Operating Frequency: 60 Hz
Insulation Class: 180°C
Recommended Fuse: 8A (120V), 5A (208V/240V), 3A (277V)
Winding Material: Copper
Mounting Hardware Included
UL Recognized (RU, cRU) for Safety Compliance

Specifications:

Manufacturer: Keystone Technologies
Model: HPS-100X-Q-KIT 1/3
Lamp Type: 100W High Pressure Sodium (S54)
Input Voltage: Quad Tap (120/208/240/277V)
Circuit Type: HX-HPF (High Power Factor)
Capacitor Rating: 10µF, 280V, 90°C
Ballast Insulation Class: 180°C
Operating Temperature: -40°F (-40°C) minimum start temperature
Max Distance to Lamp: 10 ft.
Ballast Weight: 6.17 lbs
Warranty: 2 Years
