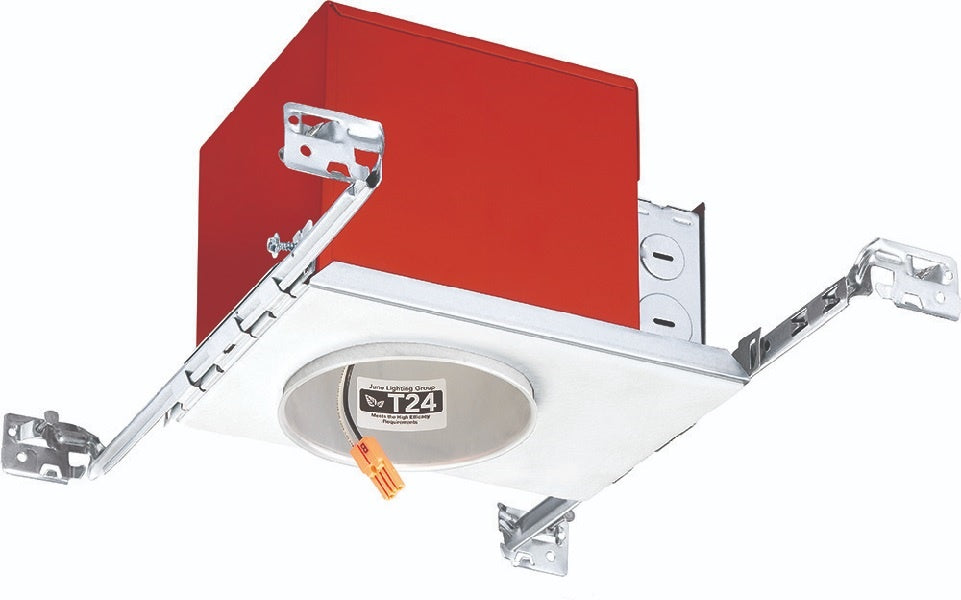

Juno Lighting IC1FW LEDT24 4" Fire-Rated Quick Connect LED IC New Construction Housing
2
sold in last
8
hours
IC1FW LEDT24
$70.00
$47.00
customers are viewing this product
PRODUCT DESCRIPTION
PRODUCT FEATURES
4" quick connect LED housing fire-rated downlight solution features nonscrew base 120V plug-in connector for simple installation of Juno retrofit
PRODUCT APPLICATIONS
FIRE RESISTANCE SPECIFICATIONS
4" quick connect LED housing fire-rated downlight solution features nonscrew base 120V plug-in connector for simple installation of Juno retrofit
LED trim modules.
Patent pending integrated low smoke intumescent barrier
Easy installation and servicabilityPatent pending integrated low smoke intumescent barrier
- Eliminates the need for installers to build additional boxes around fixtures to meet fire ratings
- Provides protection against the spread of heat and flames into the ceiling cavity for 1 hour and 2 hour fire ratings
- Reduces sound transmission between floors
- Low profile housing less than 6" in height
- Easy to handle compact size weighing only 4 lbs
- Installs into wood joists with Real Nail 3 bar hangers
PRODUCT APPLICATIONS
- Residential and commercial applications including multi-family, hotels, assisted living, dormitories and other multi-level construction
- Shallow plenum, new construction
- IC rated - for direct contact with insulation
FIRE RESISTANCE SPECIFICATIONS
- Conforms to UL263, ASTM STD E119 and CAN/ULC-S101 US and Canadian installations
- May be used in fire resistance floor-ceiling and roof-ceiling designs per UL Fire Classified Directories CDHW and CDHW7
- 1 hour fire rated floor/ceiling and roof/ceiling gypsum assembly per UL Design No. L500 & P500
- 2 hour fire rated floor/ceiling gypsum assembly per UL Design No. L500, L505, L511, L536, L538, L541, L556, L577, M500, M510, M521 & M543
