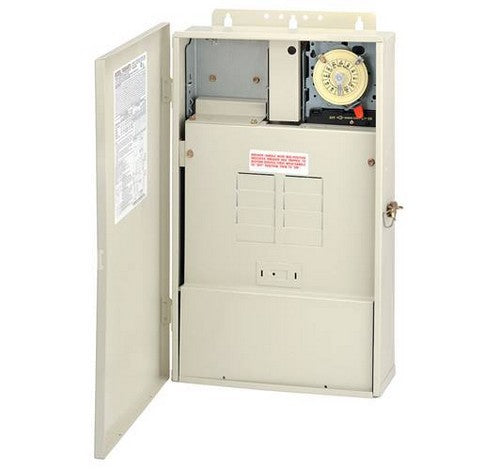

Intermatic T40004RT3 Control System with Transformer and 300 W Load Center with T104M Mechanism
2
sold in last
8
hours
T40004RT3
$370.12
customers are viewing this product
PRODUCT DESCRIPTION
T40004RT3 | Control System with Transformer and 300 W Load Center with T104M Mechanism. These mechanical control systems include built-in transformers for ease of installation.
FEATURES :
Load Centers have eight breaker spaces
All-in-one control power for pool/spa installation
Easy to wire
Can house additional Intermatic mechanisms and components
Control two-speed pumps with the T40604RT3
Heavy-duty Type 3R metal indoor/outdoor power and load center
Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately
Knockout on the side for additional wiring device
SPECIFICATIONS :
Maximum ON/OFF Operations: 0
Has Override Switch: No
Input Voltages Display: 120/208/240 VAC, 60 Hz
Resistive: 40 A, 120-240 VAC, 60 Hz
Inductive: 40 A, 120-240 VAC, 60 Hz
Tungsten: 40 A, 120-240 VAC, 60 Hz
Pilot Duty: 1000 VA, 120-240 VAC, 60 Hz
Motor :
2 HP, 24 FLA, 120 VAC, 60 Hz
5 HP, 28 FLA, 240 VAC, 60 Hz
Number of Circuits: 1
Maximum Power Consumption (W): 3 W
Switch Type: DPST
Operating Temperature Max (°C): 54
Operating Temperature Max (F): 130
Operating Temperature Min (°C): -40
Operating Temperature Min (F): -40
Warranty: 1-year
APPLICATIONS :
Low-Voltage Lighting
FEATURES :
Load Centers have eight breaker spaces
All-in-one control power for pool/spa installation
Easy to wire
Can house additional Intermatic mechanisms and components
Control two-speed pumps with the T40604RT3
Heavy-duty Type 3R metal indoor/outdoor power and load center
Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately
Knockout on the side for additional wiring device
SPECIFICATIONS :
Maximum ON/OFF Operations: 0
Has Override Switch: No
Input Voltages Display: 120/208/240 VAC, 60 Hz
Resistive: 40 A, 120-240 VAC, 60 Hz
Inductive: 40 A, 120-240 VAC, 60 Hz
Tungsten: 40 A, 120-240 VAC, 60 Hz
Pilot Duty: 1000 VA, 120-240 VAC, 60 Hz
Motor :
2 HP, 24 FLA, 120 VAC, 60 Hz
5 HP, 28 FLA, 240 VAC, 60 Hz
Number of Circuits: 1
Maximum Power Consumption (W): 3 W
Switch Type: DPST
Operating Temperature Max (°C): 54
Operating Temperature Max (F): 130
Operating Temperature Min (°C): -40
Operating Temperature Min (F): -40
Warranty: 1-year
APPLICATIONS :
Low-Voltage Lighting
