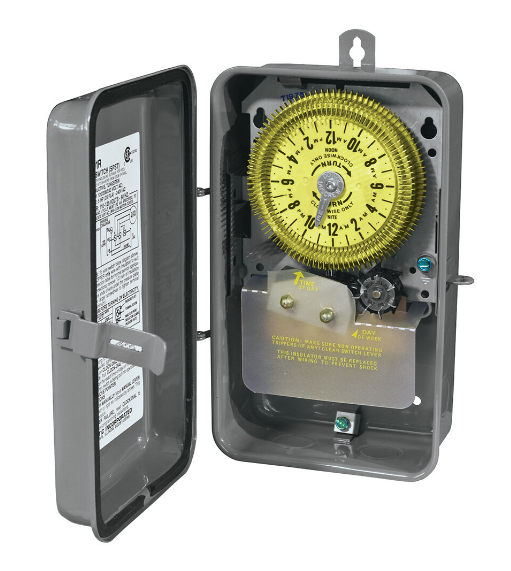

Intermatic T1975R

T1975R Product Description

This series of mechanical time switches offer more flexible scheduling capabilities by offering 15-minute intervals. These units also come with trippers that slide in or out easily for fast and accurate settings. All units can control up to 20 A of electrical load and have a single pole, double throw switch.

Specification:

Model Number T1975R
Description 24-Hour Mechanical Time Switch with Skip-a-Day, 125 VAC, 60Hz, SPDT, Outdoor Metal
Enclosure, 15 Minute Interval
UPC Code 078275192652
Brand Intermatic
Warranty Period 1-Year limited
Control Specifications
Minimum ON/OFF Times 15 min
Maximum ON/OFF Operations 48
Skipper Wheel 24 Hour
Operation Mode 24 hour
Has Manual Override Yes
Mechanical Specifications
Enclosure Type Outdoor type 3R metal
Number of Trippers Included 96
Dimensions
Product Dimensions (H x W x D) in 10.125 x 6.5 x 3.625 in
Wire Size Min #14 AWG
Wire Size Max #12 AWG
Wiring Option Terminals
Input Voltage Range(s) 125 VAC, 60 Hz
Number of Circuits 1
Switch Type SPDT
Maximum Power Consumption (W) 3 W

About Intermatic:

Our product portfolio broadened to include industrial- and commercial-grade controls starting in 1990 and would soon expand with a variety of progressive, energy-saving solutions. Today, Intermatic offers an extensive catalog of lighting and energy controls, surge protection devices, weatherproof covers, and Wi-Fi-enabled solutions as we continue to evolve and push the industry forward.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
